How Big Is a Bowling Lane? Dimensions Guide

People ask “how big is a bowling lane?” for two different reasons. Sometimes they want the official sporting measurement. More often, they are trying to work out whether a bowling lane can fit in a house, shed, basement, or private entertainment room.

Those are different questions.

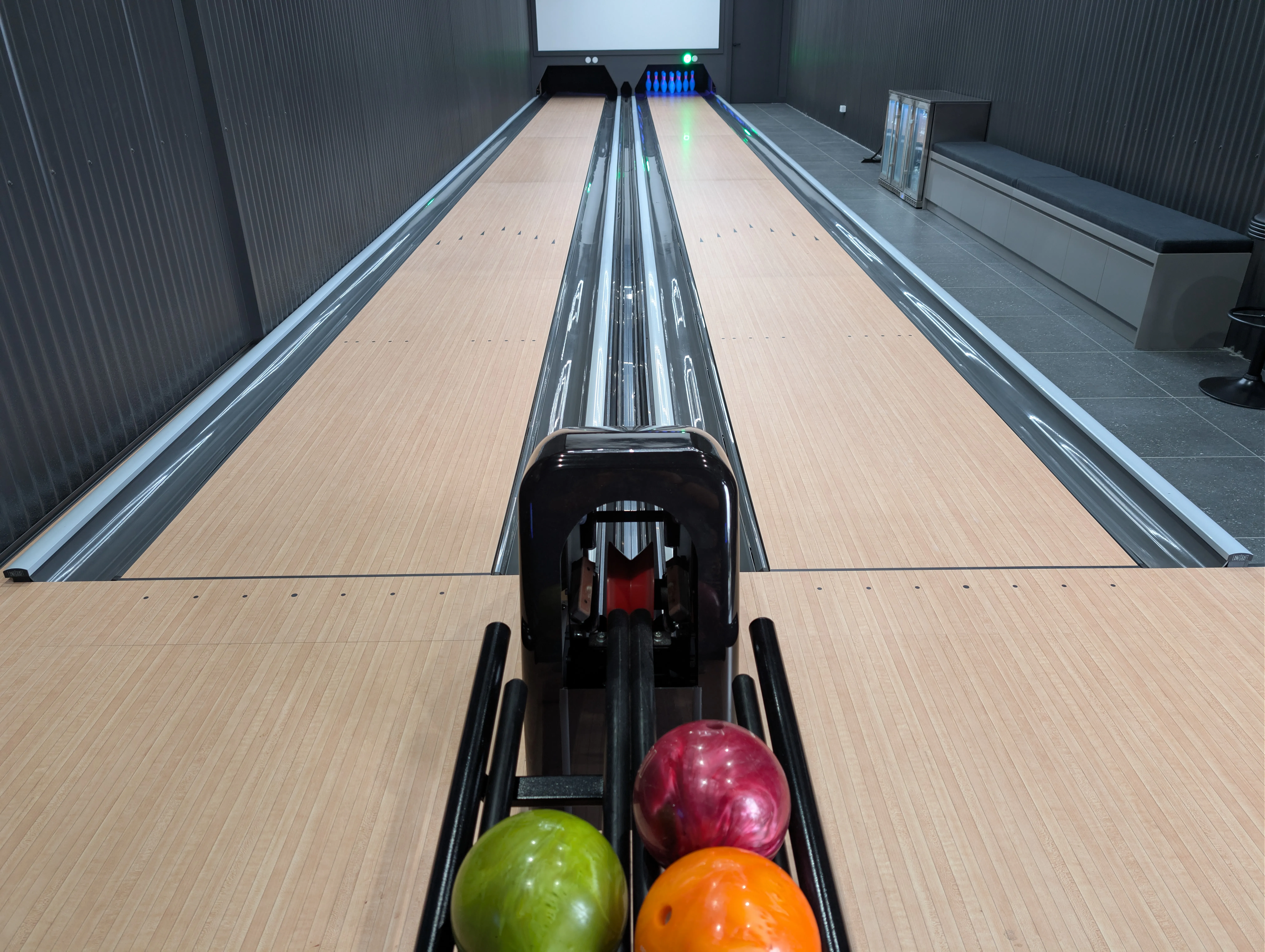

A regulation Tenpin lane is 18.29 metres from the foul line to the head pin. A complete full-length private installation needs more space than that, because the lane also needs an approach at the player end and a machine room behind the pins.

As an early planning guide, LaneCraft’s preferred full-length two-lane Tenpin set-out is 25.8 metres long by 3.7 metres wide before adding seating, circulation, bar joinery, storage, or the rest of the room fit-out.

If you want the answer for your own room rather than the general numbers, our lane planner takes your measurements and shows you instantly which formats fit, with a downloadable plan drawing.

The Lane Length Is Not the Room Length

The 18.29m measurement is the playing distance. It tells you how far the bowler is from the head pin, not how long the building needs to be.

A real installation has three parts:

• Approach: where the player stands, walks, and releases the ball.
• Lane section: the playing surface from the foul line toward the pins.
• Machine room: the service area behind the pins, where the pinsetter and mechanical equipment sit.

This is why a 19 metre room can sound close on paper but still be too short for full-length Tenpin. It may be close to the regulation playing distance, but it has not allowed for the approach or the machine room.

If you searched for “how big is a bowling alley”, this is the distinction that matters. A bowling lane is the playing system. A bowling alley usually means the whole room or venue around it.

The Regulation Tenpin Measurement

A regulation Tenpin lane is 18.29 metres, or 60 feet, from the foul line to the head pin. That is the number used for the sport itself.

On LaneCraft drawings, we often use an 18.0m lane section because it lands neatly at the start of the pin deck and equipment zone. The head pin is then set 290mm beyond that point.

So the numbers are not contradicting each other:

• 18.0m is a clean construction reference to the start of the pin deck and equipment zone.
• 290mm is the head pin position beyond that reference point.
• 18.29m is the regulation playing distance from the foul line to the head pin.

That gives builders cleaner dimensions to work with while keeping the bowling geometry correct.

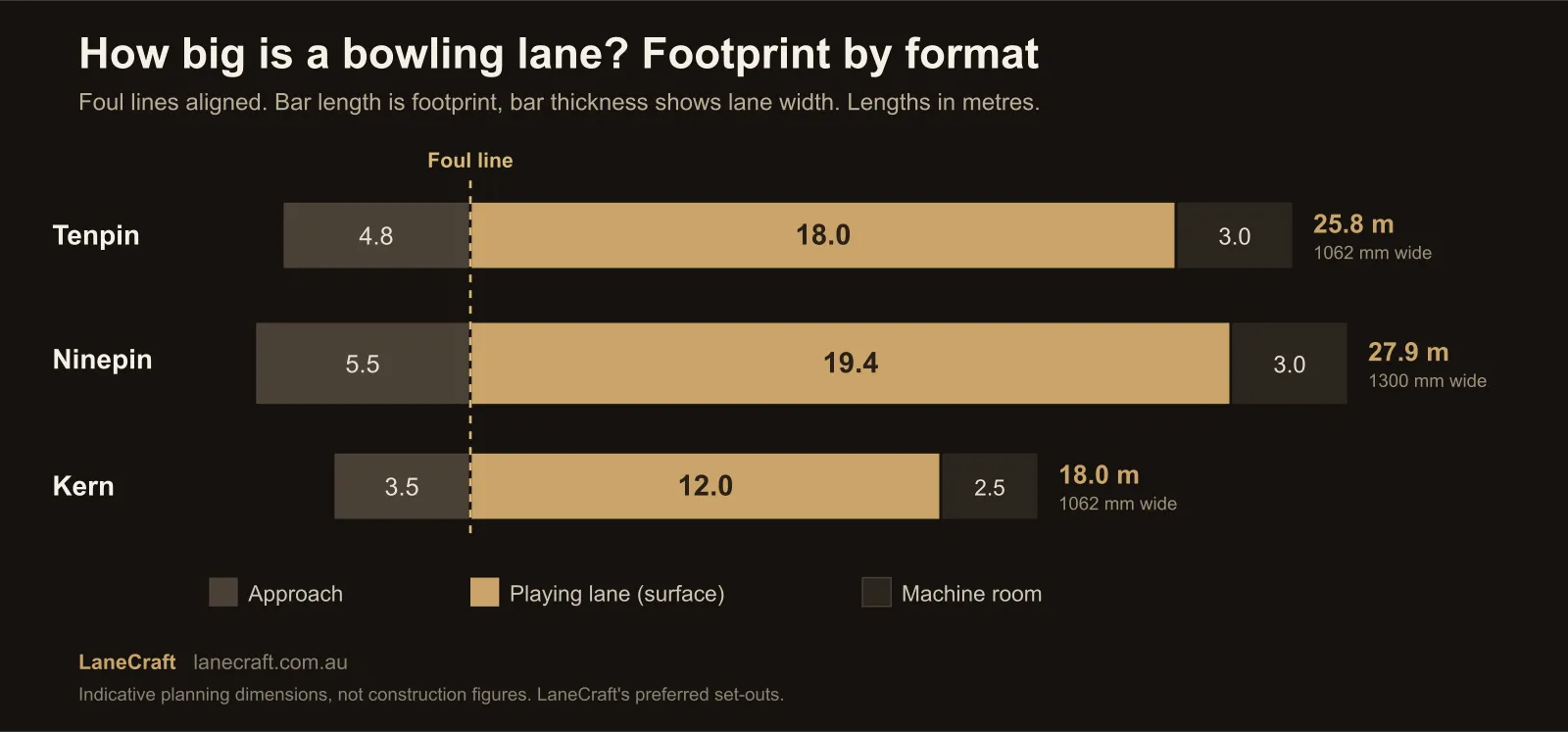

LaneCraft’s Full-Length Set-Out

For full-length private Tenpin projects, this is the set-out we like to use when the space allows. We may call it our standard, but it is not an industry standard or a rule every bowling builder follows. It is simply our preferred way to make a full-length private installation work cleanly.

Zone	Length we allow	Why it exists
Approach	4.8m	Player area at the start of the lane
Lane section	18.0m	Foul line to the start of the pin deck/equipment zone
Machine room	3.0m	Pinsetter, equipment, and service access

Together, those three zones make a 25.8m total lane length. For two lanes side by side, allow 3.7m of width for the lane system before surrounding room fit-out.

The approach is deliberately a little generous. A regulation Tenpin approach is 15 feet, or about 4.57 metres. We usually allow 4.8 metres because it works more neatly with Australian timber sizing, simplifies the build, and gives the finished installation a more substantial feel.

For a closer look at how those zones come together in a real project, download a LaneCraft Tenpin example layout (PDF).

What That Means for a Home Bowling Alley

For a full-length two-lane Tenpin installation, the lane system alone occupies about 95.5m2. That is just the bowling system. It is not the whole entertainment room.

In a compact private setup, seating can sit behind the approach so the lane footprint remains the main space requirement. In a larger room, you may also want side circulation, a bar, loose furniture, ball storage, AV equipment, acoustic treatment, feature lighting, and enough space for people to watch without standing in the playing area.

The lane footprint tells you whether the system can fit. The room layout determines whether it will feel good to use.

Ceiling Height and Slab Set-Down

Length is usually the first constraint people check, but it is not the only one. A bowling lane also needs vertical clearance and space below the finished floor level for the lane structure and mechanical components.

For our preferred full-length set-out, allow:

• 2100mm minimum overhead clearance above the finished lane surface.
• 390mm slab set-down depth below the surrounding slab.
• 30mm floor finish allowance above the surrounding slab.
• 420mm total finished floor level difference between the lane set-down and the surrounding finished floor.

The cleanest way to achieve this is to design the slab set-down before construction. Retrofitting into an existing slab can still be possible, but ceiling height, floor transitions, and service access become more constrained.

For technical coordination, see our architects and builders guide.

When Kern Is the Better Fit

Kern is LaneCraft’s compact bowling format for homes and boutique venues that do not have full-length Tenpin space.

A typical Kern installation needs approximately 18 metres total: a 12m lane, a 3.5m approach, and a 2.5m machine room. It uses a Tenpin pin arrangement with lightweight same-weight Kern Balls, no gutters, and no bowling shoes required.

That makes it a better fit for many residential projects. It still feels like real bowling, but it is easier for mixed ages and skill levels, and it fits spaces where a full-length regulation Tenpin lane simply will not work.

Read our complete guide to building a home bowling lane or see the home bowling lane options if you are comparing formats.

How to Check Your Space

If you are measuring a room, shed, basement, or new build, start with the building question rather than the sporting measurement.

Check:

1. The uninterrupted length available for the lane system.
2. The width available for one or two lanes, plus any side circulation.
3. The finished ceiling height above the future lane surface.
4. Whether a slab set-down can be designed or adapted.
5. Where seating, storage, scoring controls, and service access will go.

If the project is still on drawings, this is the best time to ask. Slab set-downs, electrical circuits, data, HVAC, lighting, and acoustic treatment are all easier to coordinate before the building design is locked in.

Next Step

If you are checking whether a bowling lane can fit, send us the available dimensions or building plans. We can tell you quickly whether the space suits full-length Tenpin, Ninepin, Kern, or a custom layout.

For project-specific advice, get in touch and we will help you work through the best format before the building gets too far down the track.

---
